Ether Starting Fluid Systems
Proven cold-start solutions for diesel engines in construction, agriculture, and industrial applications. Over 1,000,000 systems operating worldwide.
Fully Automatic | ECM Compatible | Field Serviceable | Since 1969
Physical Energy Storage Changes Everything
Supercapacitors store energy physically in an electric field—not through chemical reactions. This fundamental difference eliminates battery weaknesses.
Engineered for Modern ECM Engines

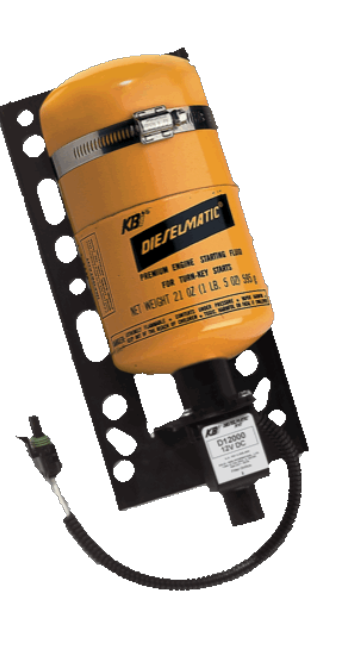

The DIESELMATIC NVT’s patented ether starting fluid system is specially designed for compatibility with modern ECM engines. This revolutionary unit is fully automatic and plugs directly into the “Starting Fluid” port on the engine’s Electronic Control Module—no separate interface required.
The DIESELMATIC NVT is activated by the signal from the ECM based on vital engine information (speed, temperature, etc.) to deliver starting fluid more precisely than any other injection system on the market today. The fully integrated metering orifice and filter have been totally re-engineered, setting a new standard in performance and reliability.
We received two DIESELMATIC® units for our generator and installed them, following the well written and illustrated instruction manual, with no problems. Our generator now starts every time with no intervention and no problem. The product is as good or better than advertised.
— Alonzo Derrington, Caesars Entertainment
Compatible with ECM Engines
Direct interface to engine control module
Low current draw: 1.3 amps @ 12V / 0.6 amps @ 24V
Automatically activated by ECM signal
Injects starting fluid precisely based on engine data
Engineered for Reliability
Sealed from environmental contamination
O-Ring cylinder seal prevents leakage
Encapsulated coil for durability
Non-corroding brass connections
Field serviceable design
Integrated metering orifice and filter
Ether Cylinders
Dirt and Moisture Seal
Kold-Ban ether cylinders feature a unique O-Ring seal that protects the valve from accumulating dirt and moisture that would otherwise cause clogging and malfunction. The O-Ring seal also provides easier installation of new cylinders by preventing the old one from “welding” to the valve.
Protective Cap & Valve Gasket
Each cylinder comes with a protective cap and replacement valve gasket. The protective cap guards cylinder threads from damage and prevents dirt entry during storage or shipping. The valve gasket ensures a proper seal and prevents starting fluid leakage when threading the cylinder onto a non-NVT valve.
Important Note:
NVT valves do not use a valve gasket. The removable valve gasket should NOT be installed when replacing NVT ether cylinders. Always use a new valve gasket when replacing cylinders on non-NVT systems.
Ether Cylinder Recycling Program
Kold-Ban leads the industry in environmental responsibility with a comprehensive ether cylinder recycling program. We provide all required documents and procedures to ensure proper disposal of used cylinders, alleviating any concerns about environmental impact.
Call for Authorization
Contact Kold-Ban at (800) 527-8278 for a Return Authorization Number. We’ll provide labels and documentation for shipment.
Prepare Shipment
Use original cartons if possible. Pack used DOT39NRC ether cylinders securely for freight prepaid shipping to Kold-Ban.
No Processing Fees
When purchasing an equal number of Kold-Ban ether cylinders (or providing proof of purchase), there are no recycling fees.
Program Details:
- Applies only to DOT39NRC ether cylinders
- We accept competitive brands for recycling
- All cylinders must be shipped freight prepaid
- High pressure cylinders that are not ether cylinders will NOT be accepted
- Return Authorization Number required for all shipments
Ready to Recycle?
Call (800) 527-8278 for a Return Authorization NumberNeed Ether Starting Fluid Systems?
Contact our team for product information, installation support, or recycling authorization
